주요제품

자동차부품 시험장비

Door slam test

- It"s for evaluation the durability of door by hydraulic cylinder.

- Also door performance will be checked periodically.

- Robot(outer slam) & Pneumatic(inner slam)

- 4 vehicle available

- Control up to 4 doors

- Available In Environmental condition

- 200 slams/h, 1.6life-100,000cycle

- Test item

- GMW15094 Door inner slam test & measuring

- objective data

- GMW15093 Door check load durability test

More View

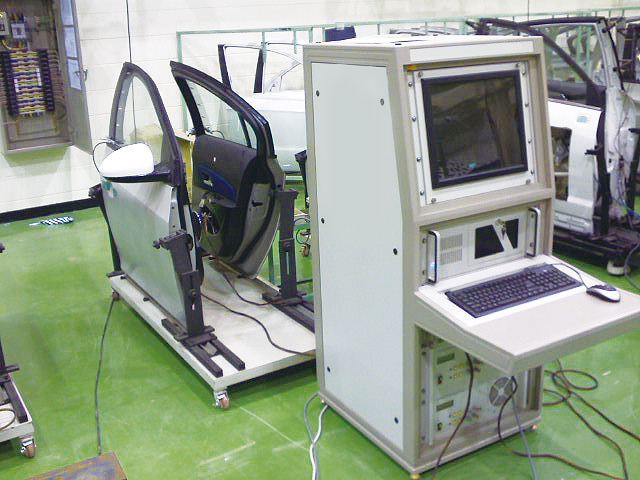

Window regulator dura. test

- It"s for evaluation the durability of window regulator under the same condition of car simulation.

- Also it checks performance of window regulator periodically.

- Power consoles (2set , 4door/set)

- Manual consoles

- Multiple GM standard cycle

- GMW15080 Window dropping dura.

- & measuring objective data.

More View

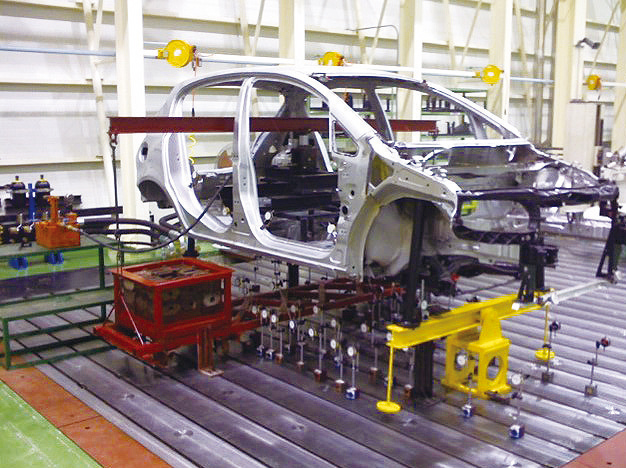

BIW static stiffness test rig

- 104 dial gages (0.01 mm accuracy)

- Loading device (6667N applied)

- DAQ 1-set

- 1 bed-plate available

More View

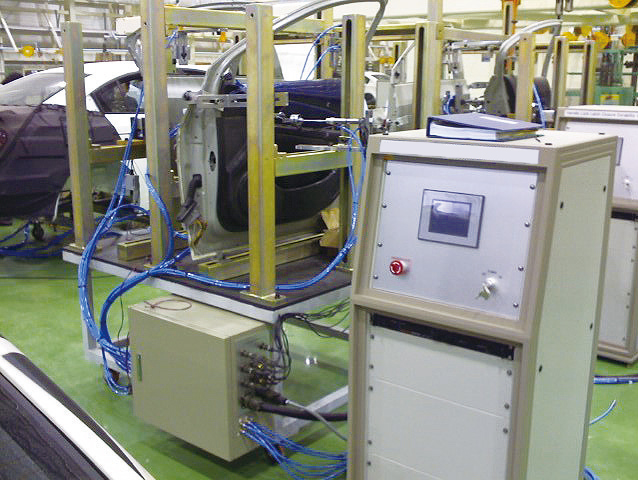

Handle / Lock / Latch dura. test

- Variety combination handle / lock / latch performance & durability test.

- 2 doors/console , 2 consoles.

- Pneumatic actuation.

- For use in all environments.

More View

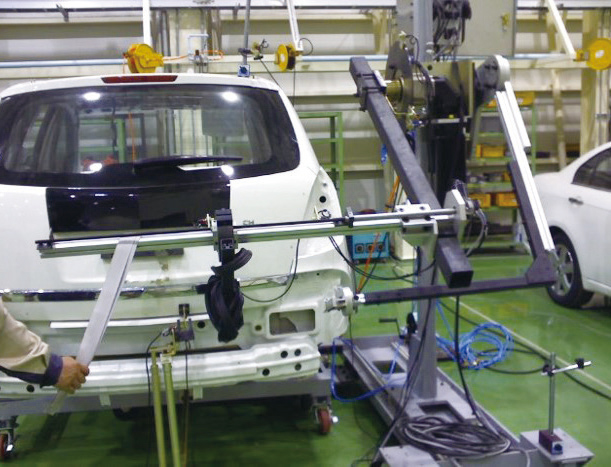

FRT / RR slam test

- 4 vehicle available

- Available in environmental condition

- Closed loop slam velocity control.

- Select from a variety of lock and release set-up.

More View

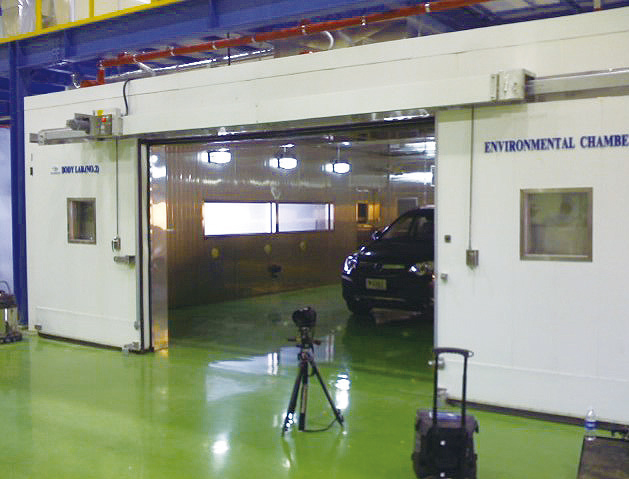

Environmental chambers

- 2 large chambers (2 vehicle/chamber)

- 95C maximum temperature

- -40C minimum temperature

- 95% maximum humidity

- Inner size : 10m L * 8.5m W * 3m H

More View
