PRODUCT

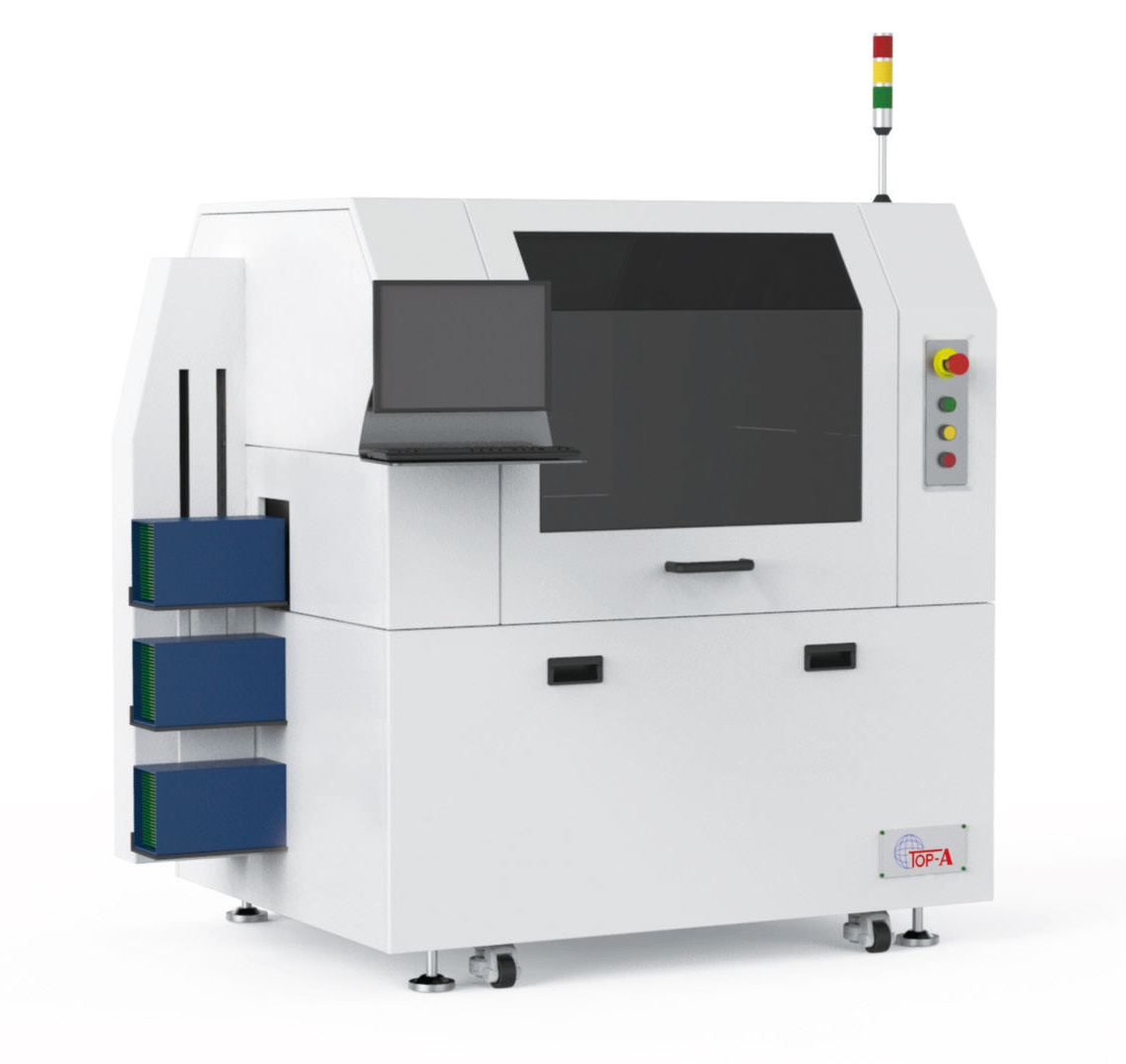

Laser marking system
.jpg)
| Item | New laser marking | Remarks |
|---|---|---|
| Machine size | 2,500 * 1,500 * 1,800 | |
| Utility | Power | 3-Phase, AC220V±10%, 30A |
| Air pressure | 5bar | |
| PCB size | 60 ~ 105 * 250mm | |
| Laser | Fiber laser | |
| Cycle time | 10 ~ 12strip/min | Based on back marking |
| MGZ conveyor | 95mm MGZ : 8ea | |
| MGZ guide conversion | Conversion : 220 ~ 320mm | |
| 1st pass yield | 99.98% | |
| Up time | 99% | |
| VD vision | 2M.F.O.V : 51 * 39 (Pixel resolution : 0.032mm) |
PRS (Precise recognition system) to compensate marking position |
| QC vision | 5M.F.O.V : 100 * 75 (Pixel resolution : 0.040mm) |
|
| Feeding method | Index type (shuttle type) | |
| Laser | IR / UV / Green | Based on marking materials |
