PRODUCT
Auto dispensing&attach system
AUTO SYSTEM FOR SEMICONDUCTOR, LCD AND LED
.jpg)
| Magazine loading zone |
3magazines zone
Y-axis : Ball screw servo motor
Strip pusher : Air cylinder |
|---|---|
| Dispenser zone |
1head or 2heads system (Option)
X, Y, Z axis : Ball screw servo system
Z axis by probe : Laser contact (Accuracy 1micro)
Dispenser X, Y, Z axis motion accuracy: ± 15micro
Needle calibration part
Syringe : 10cc ~ 180cc |
| Dispenser controller | Model : Mushasi ml-808fx / Dispenser volume : ± 0.5% |
| Attach zone |
X, Y, Z axis : Ball screw servo system
Z axis by probe : Laser contact (Accuracy 1micro)
Vacuum pick-up tool : Easy conversion
Pick up & place head : 1head or 2heads (Option)
Placement X, Y, Z motion accuracy: ± 15micro |
| PRS system (Vision camera) |
Inspection accuracy in X - Y - Z axis : ± 5micro
Inspection accuracy in theta : ± 0.2
Good & reject unit detect
Dispenser zone prs vision : 1set
Attach zone prs vision : 1set
Data inspection vision : 1set |
| Housing tray zone |
Tray elevator : Ball screw servo system
Tray grip & ejector : Triming belt servo system
Packing tray or standard tray using (Any tray)
1 magazine stack (in 5 trays) |
| Operation | PC, Touch monitor |
| Productivity | Cycle time : 3sec/unit, UPH: 1,200ea/min |
| Reliability |
System up time : 99.5%
MTBA : 8hrs / MITA: 2mins / MTBT: 480hrs / MITR: 1hrs |

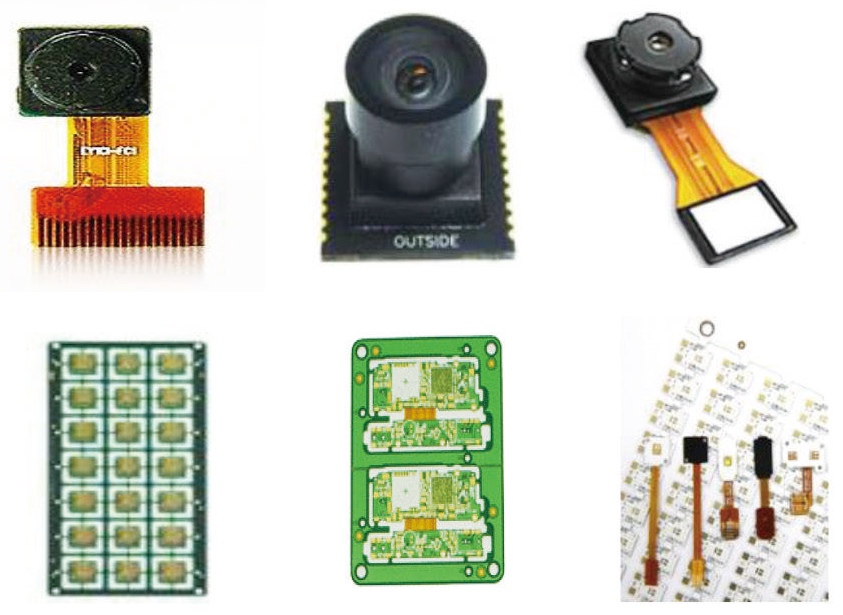

| Application package | Any camera module device |
| Power | 220VAC + 10%, single phase, 60Hz |
| Pneumatics | Min. 5cfm (80psi) |
| Dimension | 1,700 (L) X 1,140 (W) X 1,600 (H), 800kg |
